GARRETT G42-1200 73MM Turbocharger 860778-5004
Price range: $2,800.00 through $3,650.00
Horsepower: 475 – 1200
Displacement: 2.0L – 7.0L
Turbo P/N: 860778-5004
Includes (2) -6AN water fittings
Product Features:
More power and faster boost response
New turbine wheel flows 10% more and has peak efficiency of 77% (Compared to GTX42 at 74% with
1.01A/R) 10mm ceramic dual ball bearing cartridge (Same as GTX42) A new oil deflector redirects oil
away from the compressor stage seals reducing possibility of oil leakage through the seals.
Twin piston rings on both sides of the shaft reduce the likeliness of oil leakage from the center housing
to the compressor or turbine stage.
Quick spooling, high horsepower solution for 2.0 liter up to 7.0 liter engine Ten blade, forged, fullymachined G Series compressor wheel with high flowing aero Low inertia compressor wheel resulting in
faster boost response
TURBO SPECIFICATIONS:

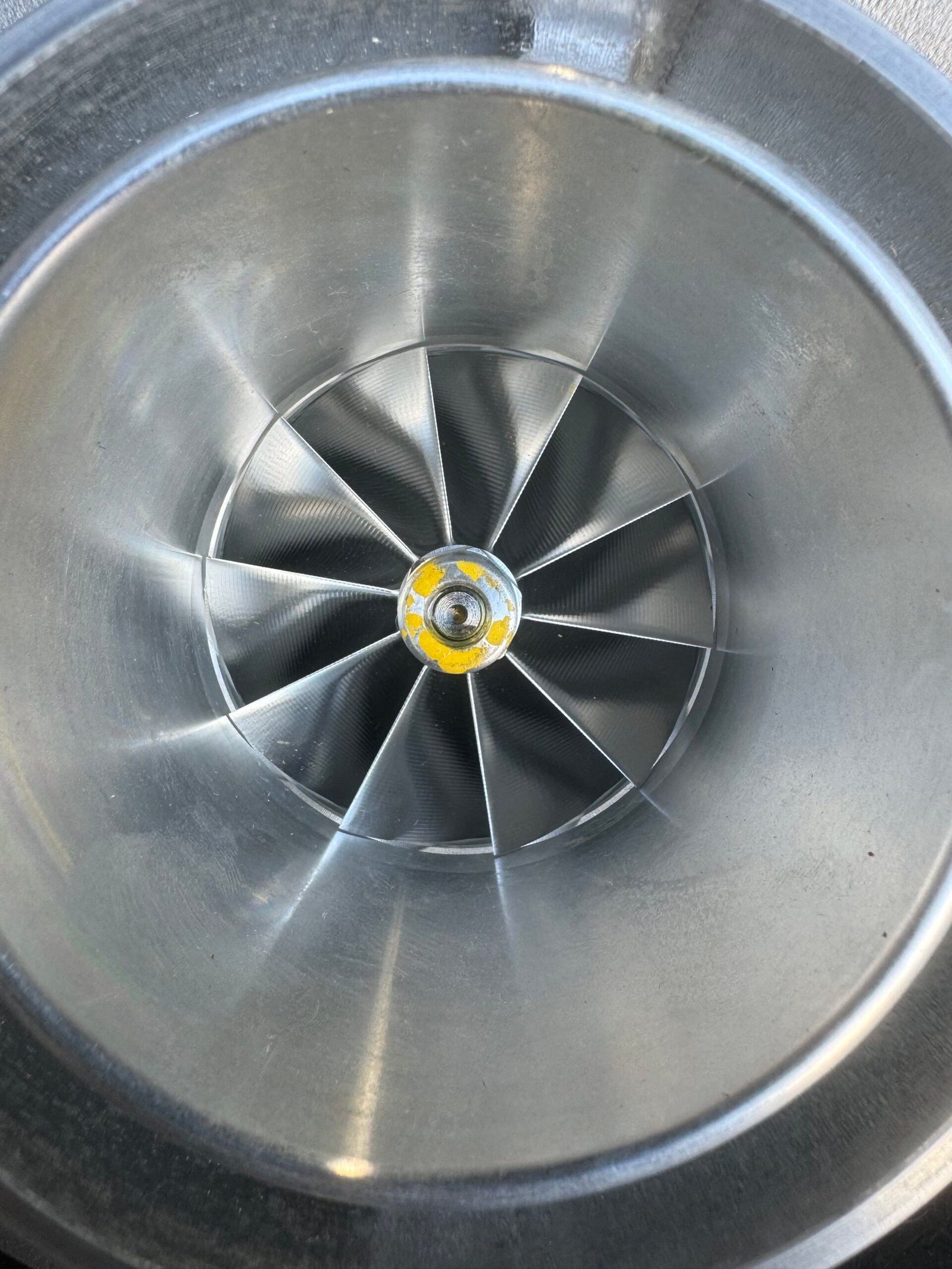

Compressor Wheel Inlet: 73mm
Compressor Exducer: 91mm
Compressor Housing A/R: 0.85
Compressor Housing Outlet: 3.5″ V-band Turbine Wheel Inducer: 82mm Turbine Wheel Exducer: 75mm
Turbine Wheel Trim: 84 Turbine Housing Inlet: T4 Undivided Turbine Housing Outlet: 4″ Groove
| Weight | 55 lbs |
|---|---|
| Dimensions | 12 × 12 × 12 in |
| Select Turbine Housing: | No Turbine Housing, T4 Undivided 1.01A/R, T4 Undivided 1.15A/R, T4 Undivided 1.28A/R, V-band Inlet/Outlet 1.01A/R |
